Dynamic Polling Scheduler – Full Design

Article guided by: Ashok Sahara and Habibur Rahman

Polling millions of shipments every few hours with a single cron job creates multiple problems—burst traffic that overwhelms courier APIs, no per-account control, and minimal visibility into failures. To solve this, we built the Dynamic Polling Scheduler, a continuous, account-aware system that spreads the load evenly, guarantees exactly-once message delivery, and provides granular observability. In this article, we’ll explain the limitations of the previous approach, the design of the new scheduler, and how it ensures reliable, scalable, and crash-safe shipment polling.

1. Problem Statement (Why we’re changing things)

• Burst traffic: The current 2-hour cron pulls ~10 M open shipments in one shot, pushes them to Kafka, and subjects courier partners to massive QPS spikes.

• No per-account control: Every customer is polled on the same 2 h cadence, whether they need it or not.

• Coarse observability: We only know something’s wrong every two hours.

• Missed SLAs: Rate-limit blocks can delay polling beyond the 2 h window.

Goal

Move to a continuous, account-aware scheduler that:

• Polls each shipment on its own interval (default = 120 min, configurable per account).

• Spreads the load evenly every 5 min to keep partner APIs happy.

• Guarantees “exactly-once” enqueue, zero data loss on crashes.

• Gives granular, always-on alerting and a lean storage footprint.

• Concurrency-safe under many replicas.

• Observability without logs.

2 Requirements (concise)

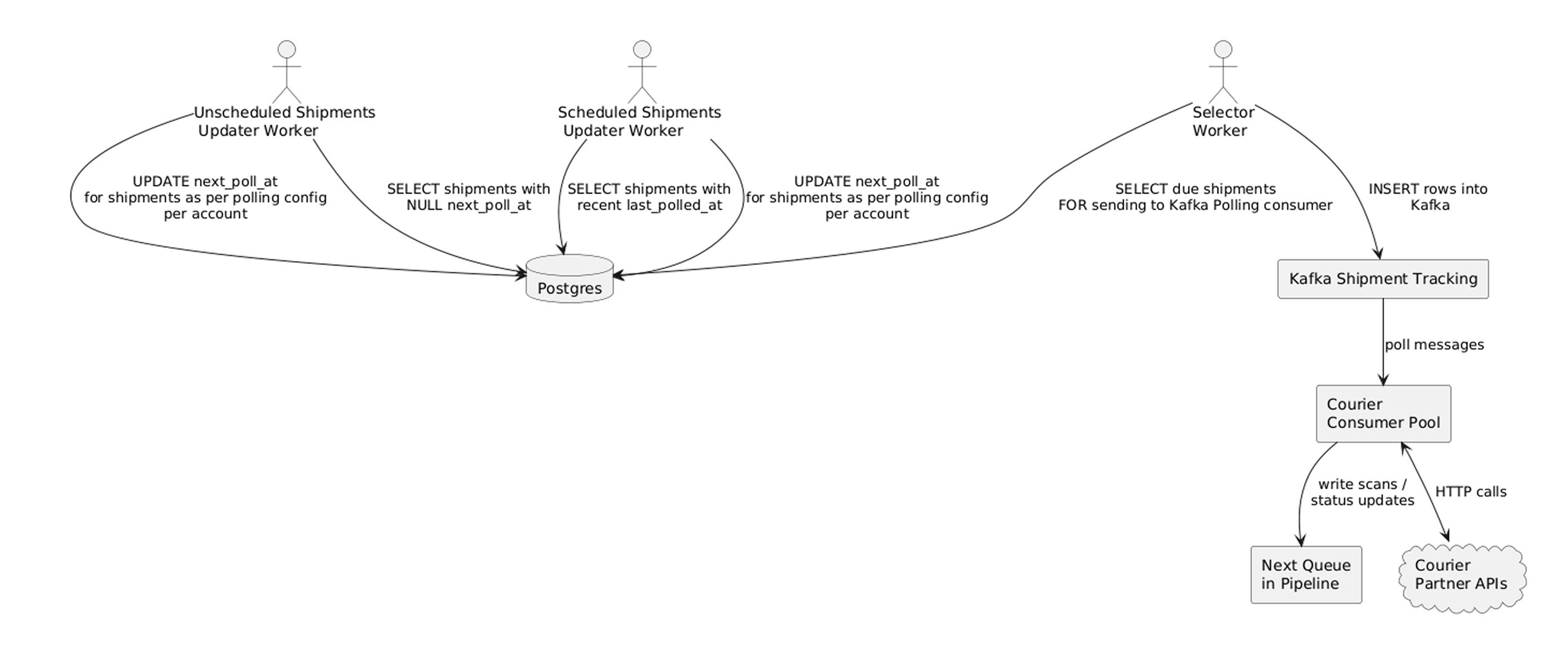

3 High-Level Architecture

3.1. Component Overview

Selector Worker (Ingress Control)

• Runs every 1 minutes.

• Selects shipments that are due for polling (next_poll_at <= NOW()) from the shipment_polling_tracker table.

• Inserts a simple record for each due shipment into the scheduler_outbox table.

• Commits and exits quickly to keep database locks short and efficient.

Unscheduled Shipments Updater Worker (Egress Control)

• Continuously checks the  table shipment_polling_tracker for new shipments to be polled(Fresh AWB’s Registered)

• Fetches new shipments (with next_poll_at as NULL), assigns a randomized next_poll_at within the account’s polling interval to spread out load.

• Updates   next_poll_at in shipment_polling_tracker using the polling interval from polling_schedule_config.

Scheduled Shipments Updater Worker (Egress Control)

• Periodically reviews all shipments in the shipment_polling_tracker table.

• For polled shipments, recalculates and updates next_poll_at based on the last poll time and the account’s interval, adding a small random jitter to avoid future spikes.

• Ensures that polling times are evenly distributed, preventing traffic bursts and keeping the system smooth.

Kafka Shipment Tracking

• Receives shipment polling events from the Flusher Worker.

• Guarantees exactly-once delivery to all downstream consumers, even in the event of retries or failures.

Courier Consumer Pool

• Continuously polls Kafka for new shipment events.

• Makes HTTP requests to courier partner APIs to fetch the latest shipment status.

• Writes status updates and scan events to the next queue in the pipeline for further processing.

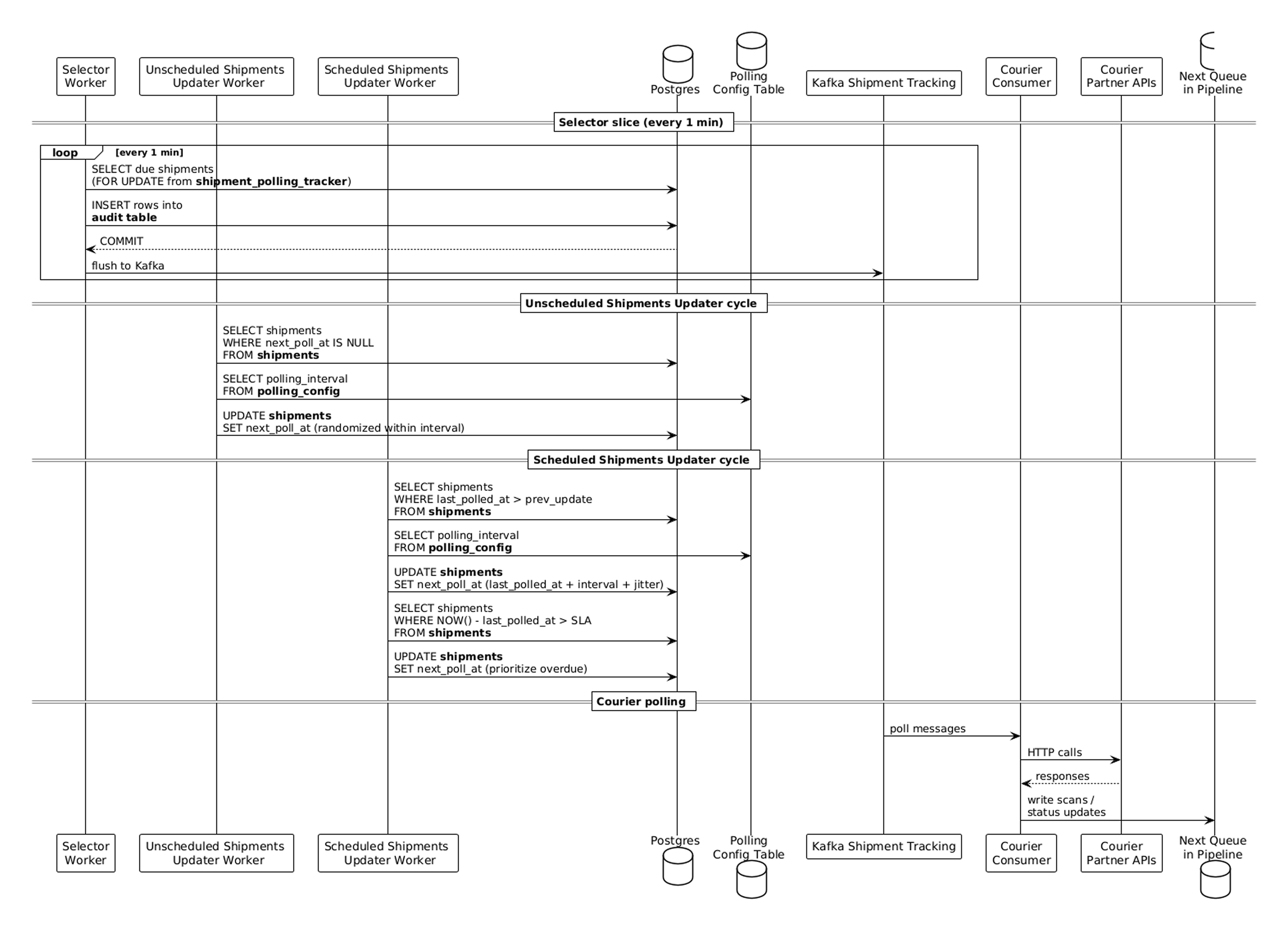

3.2. Detailed Sequence (5-min slice)

• Exactly-Once Messaging.

  The Flusher uses Kafka’s idempotent-producer protocol keyed on shipment_id, which means a resend after a crash is automatically de-duplicated at the broker level. Downstream consumers therefore see each shipment message once, regardless of partial failures.

• Load Smoothing.

  By slicing every account’s interval into 24 equal five-minute windows, the system spreads API calls evenly instead of issuing two-hour bursts. Courier-facing QPS is flat, staying within partner rate limits.

• Horizontal Scalability.

  Both Selector and Flusher are stateless. Additional replicas can be deployed to absorb higher throughput simply by increasing Nomad counts; row-level locks prevent duplicate processing.

• Latency Budget.

  Control-plane transactions target sub-200 ms per five-minute slice.

  Data-plane latency is bounded only by courier round-trip times; polling freshness SLO is 1.1 × configured interval for 99% of shipments.

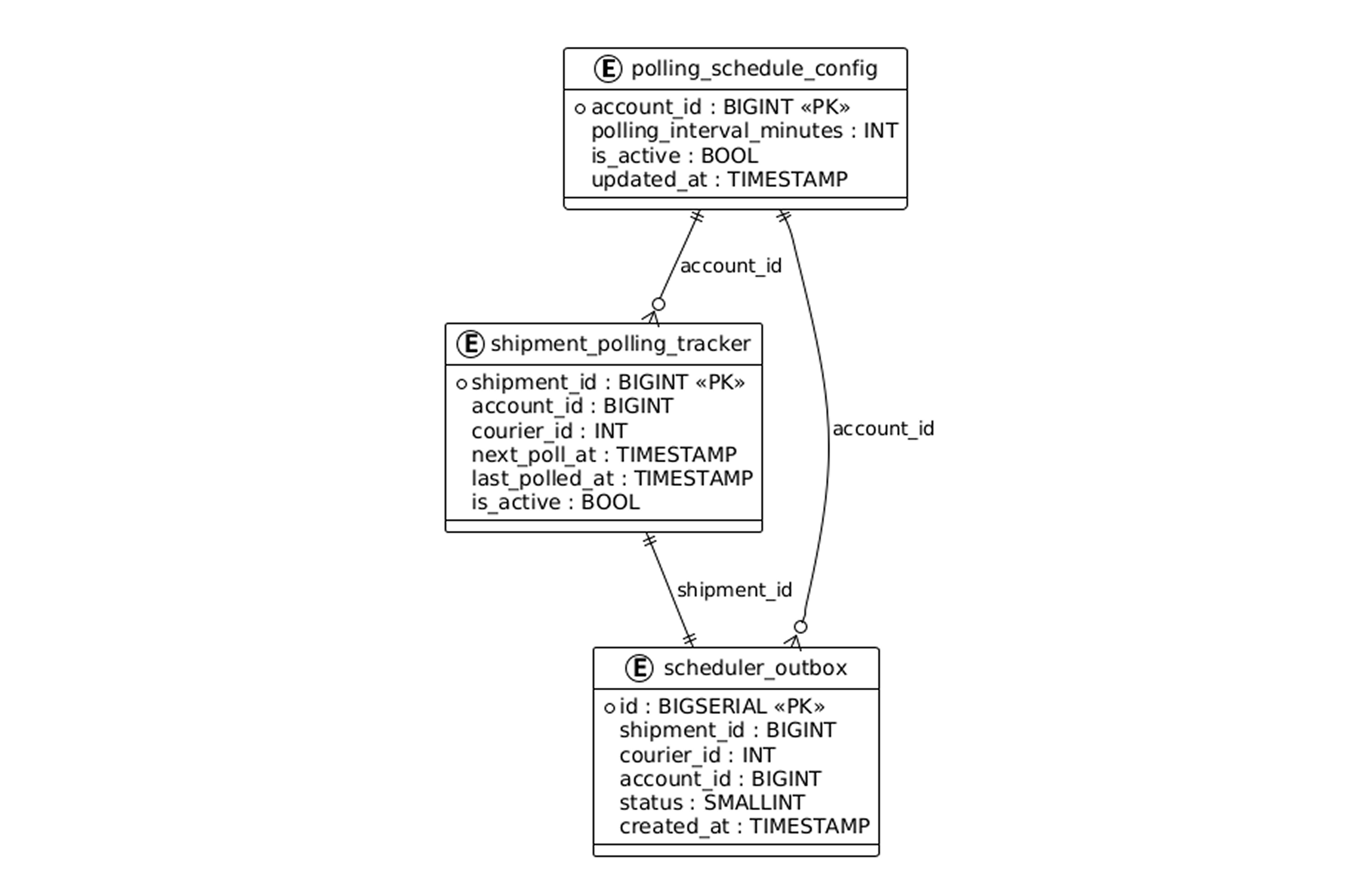

3.3 Logical Data Model (new tables)

Race Condition Handling with JobConfig

Instead of relying on row-level locks like FOR UPDATE SKIP LOCKED, we use a JobConfig table as a distributed lease manager.

CREATE TABLE job_config (
    job_name        TEXT PRIMARY KEY,
    slice_start     TIMESTAMP,
    slice_end       TIMESTAMP,
    last_started_at TIMESTAMP,
    last_completed_at TIMESTAMP,
    running         BOOLEAN DEFAULT false,
    version         BIGINT
);

Claiming a Job

Each worker replica tries to claim a job slice:

UPDATE job_config
SET running = true,
    last_started_at = NOW(),
    version = version + 1
WHERE job_name = :job
  AND running = false
  AND version = :current_version;

• If update count = 1 → lease acquired.

• If update count = 0 → another worker already owns it.

Preventing Races

1. Selector Jobs

   • Only one replica selects shipments per slice.

   • Prevents double enqueueing of the same shipments.

2. Flusher Jobs

   • Only one replica flushes a batch from the outbox.

   • Guarantees exactly-once enqueue into Kafka.

3. Updater Jobs

   • Ensures only one rescheduler run per slice.

   • Prevents next_poll_at overwrite collisions.

Catch-Up Logic

• If a job is missed (e.g., worker crash), the next worker checks for slice_end < NOW() AND running=false.

• Missed slices are replayed in order until the schedule is caught up.

Keeping Our Queues Healthy: How We Detect Scheduler & Consumer Issues

In large-scale systems like ours, shipments move through a complex network of jobs, queues, and schedulers. To keep everything running smoothly, we’ve built two streams of alerts—one for the producer side (the scheduler that puts work into queues) and one for the consumer side (the workers that pull messages out of queues).

Think of it like a factory:

• Producer alerts make sure the conveyor belt is loaded on time.

• Consumer alerts make sure the workers on the line are keeping up.

Producer-Side Alerts: Watching the Scheduler

The scheduler’s job is to decide when each shipment should be checked again and assign it a next_poll_at time. If the scheduler falls behind, shipments don’t get scheduled on time, and downstream processes suffer.

We track two key signals:

Consumer-Side Alerts: Watching the Workers

Even if the scheduler is doing its job, things can still go wrong on the consumption side.

• What we track: Whether messages start piling up in the queue.

• Why it matters: If consumers (the workers pulling shipments for processing) slow down or stall, backlogs build up quickly. That’s our early warning signal to scale workers or investigate bottlenecks.

Why All This Matters

Queues are the heartbeat of our tracking system. A delay on the producer side means shipments don’t even enter the pipeline. A delay on the consumer side means shipments are stuck waiting.

By monitoring both ends, we make sure:

• No shipment is left unscheduled.


• No shipment gets unfairly skipped.


• No queue grows silently in the background.

This two-pronged alerting system helps us catch issues early and keep delivery experiences smooth for our clients.
